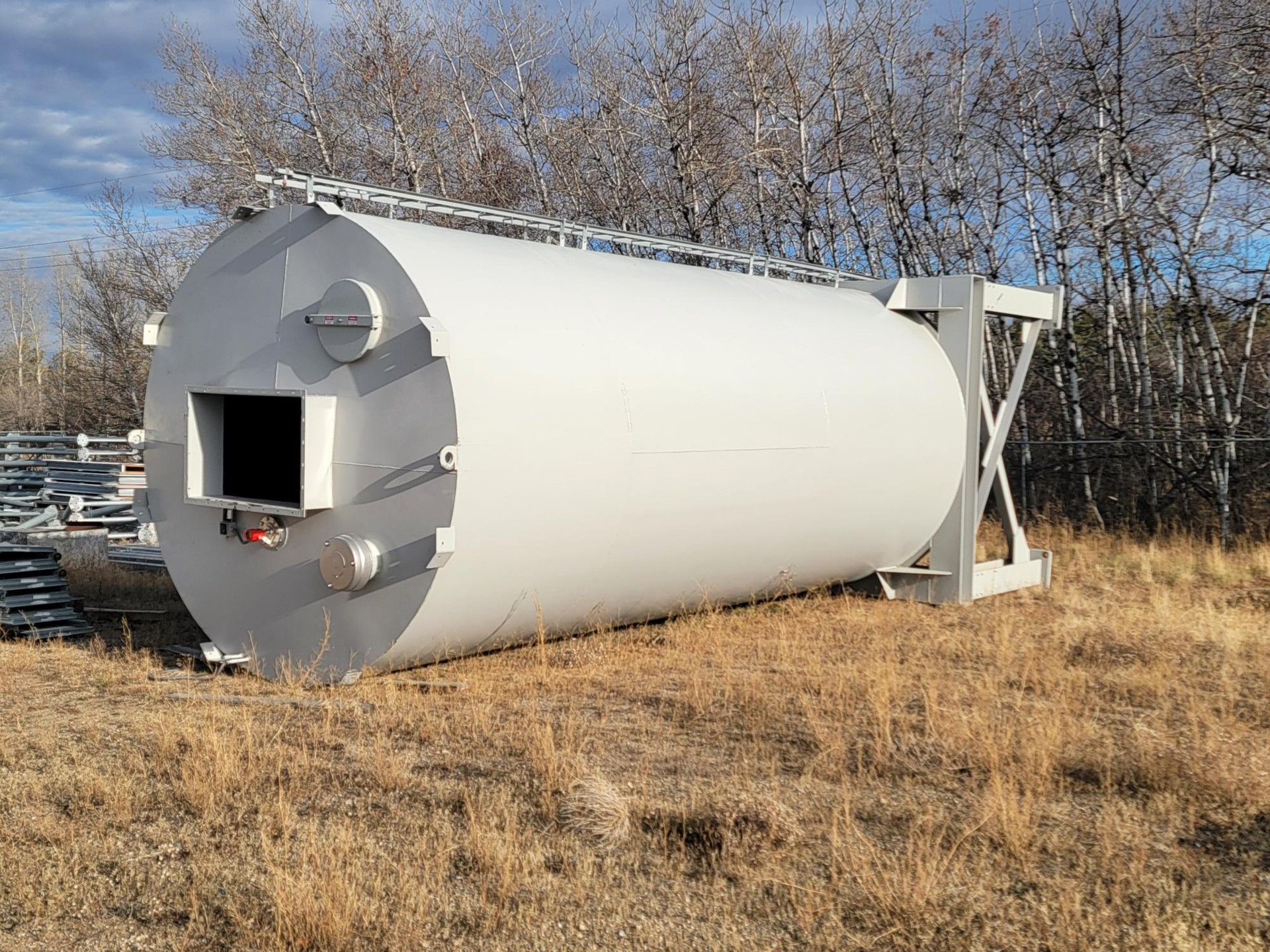

2022 (Never Installed) NOBLE MV-150 VERTICAL GUPPY (SEISMIC under structure) 2,864 CuFt., 115 tons @ 80 lbs./CuFt. 11'-11" Wide x 43'-0" Overall length.
One 5" dia. fill pipe with 4" CAM-LOCK coupling.
CON-E-CO PJC-300 SILO collector. WAM Silo Pop-Off
Side-Mount High- and Low-Level indicator. High indicator is 3' down from the top of silo. Low indicator is 23'-0" down from top of silo. L.E.D. LIGHT BAR ASSEMBLY - Red and Green with 50ft cord and Horn.
Handrail, ladder (no cage) and climbing device.
WAM 12" slide gate.

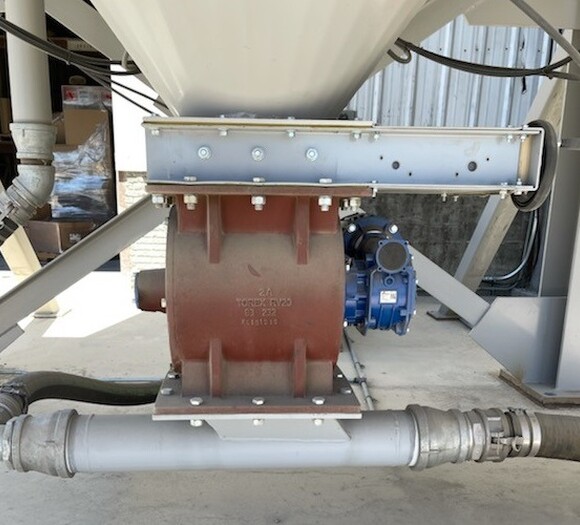

WAM (RVN20.30.1A) VANE FEEDER / ROTARY VALVE NW/STD ROTORS, GEARBOX & MOTOR 30 RPM, 12X12" OPENING (VULKAN POLY REPLACEABLE TIPS). 21 CFM. 44 T/HR CEMENT @ 70 #/FT3 47.25 T/HR @ 75 #/FT3 MOTORS ARE WEG 2HP VFD RATED (CAUTION ON HIGH RPM).

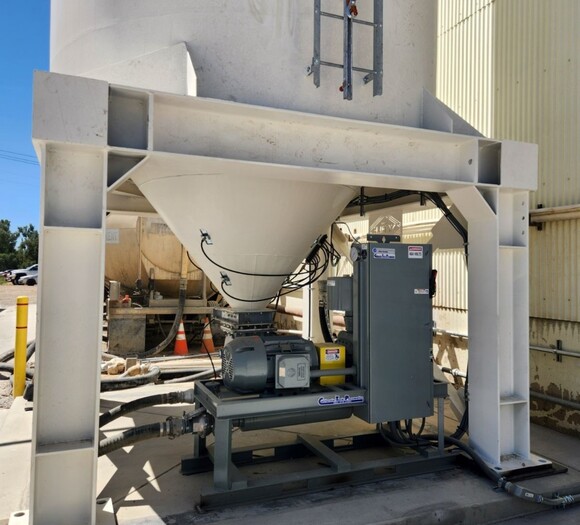

575 VAC 3 PHASE 60hz - NOBLE 50HP GARDNER DENVER 9 W/50HP ELECTRIC MOTOR,BLOWER STAND, INTAKE FILTER, EXHAUST SILENCER,CHECK VALVE, RELIEF VALVE,HOSE CONNECTION, MOTOR STARTER W/NON-FUSED DISCONNECT-START-STOP-FUSED,FUSES, 120 VAC COIL, OVERLOAD, OCTAL-ON, OCTAL-OFF, OCTAL BASE, HOA SWITCH ASSY, RELAY, RELAY, DIN RAIL, WIRING and PAINTED. INCLUDES 2HP STARTER AND BREAKER FOR VANE FEEDER. INCLUDES AUTOMATIC TRANSFER LOGIC. START BLOWER AND FEEDER WITH ON DELAY TIMER FOR FEEDER AND OFF DELAY TIMER FOR BLOWER. CUSTOMER 120 VAC SIGNAL TO START AUTOMATIC TRANSFER CALL.

BINMASTER - NPR-80 radar indicator from binmaster with digital readout. NCR-80.IXCSDAHXANFXX - NCR-80 is an 80 Ghz open air radar for continuous measurement of bulk solids under different process conditions. It is ideal for level measurement in very tall silos, large bunkers and segmented vessels. Narrow beam focus and simple setup ensure reliable measurement. Benefits include: - Measuring range to 393 ft. (120 m) - Narrow 4° beam angle - Maintenance-free operation through non-contact measuring principle - High plant availability, virtually wear and maintenance-free - Reliable measurement independent of dust, vapor, or noise.
Seismic legs with under structure.

DEDUCT of Transportation system; Guppy to ship on double drop stretch trailer. Shipping dimensions: 11’-11” wide x 13’-9” high x 44’-0” long x 30,000 lbs.

PAINTED MEDIUM GRAY - TWO PART EPOXY PAINT

Sold as-is, where-is (Dundurn, Saskatchewan Canada) with no implied warranty.  DHE Inc. believes the specifications included in this web site are accurate, however they are not guaranteed.  This equipment is offered as is, where is and is subject to prior sale or other disposition and does not necessarily comply with O.S.H.A. or E.P.A. standards.  Owner will load out on customer supplied trailer.
