If your new to the Concrete Ready Mix Industry, this is the plant for you!

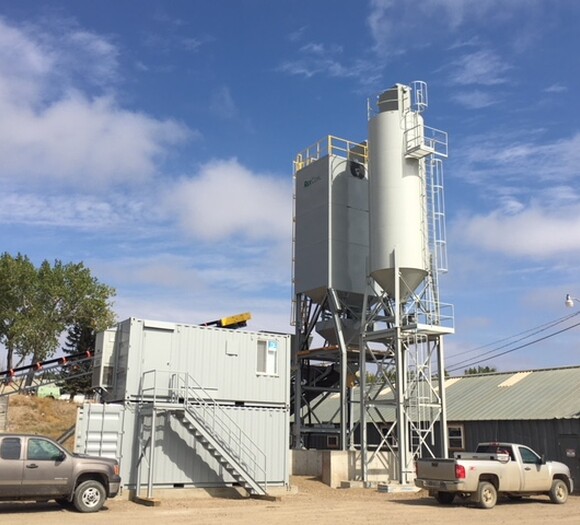

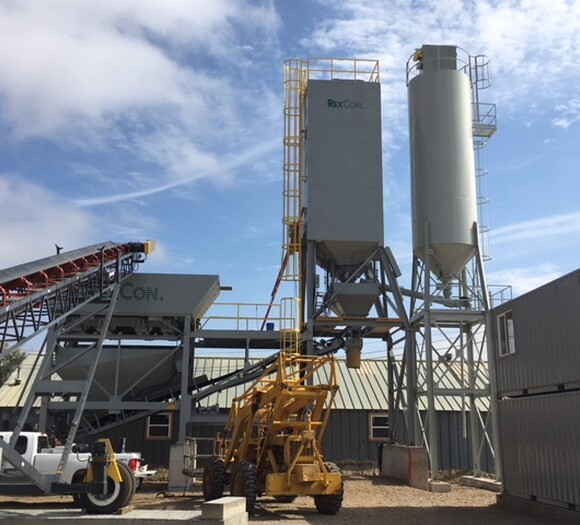

American Made - Concrete Batch Plant.
Specifications:
Aggregate Bin: 45 Cu. Yd. | 66 Ton | C.P.M.B. Rated | Four (4) Equal “In-Line” Compartments
Aggregate Batcher: 10 Cu. Yd. | C.P.M.B. rated | 3/16” thick Double clamshell discharge gate with dual air cylinders and an inching type discharge control.

Gravity Cement Bin: 2,400 Cu. Ft. | 112 Ton | 600 BBL | C.P.M.B. Rated.
Cement Batcher: 10 Cu. Yd | C.P.M.B. Rated batcher | 3/16” thick Atmospheric vent, cement aeration pads with adjustable flow control and air-operated butterfly discharge gate.

Batch Transfer Belt: 30” wide with travel speed: 350 FPM (feet per minute) Start-up warning horn with emergency stop pull cord on both sides of belt.
Water System: Water Meter 3” with in-line strainer.
Air System: High pressure – Air Compressor 15 HP, two-stage, constant speed air compressor with a 120 gallon tank with after-cooler and auto-drain.

Electrical System: UL-approved Power Panel. 460 Volt Panel - Starters for Cement Screws, Batch Belt & Air Compressor Motors. Panel mounted on Plant. 110V transformer.

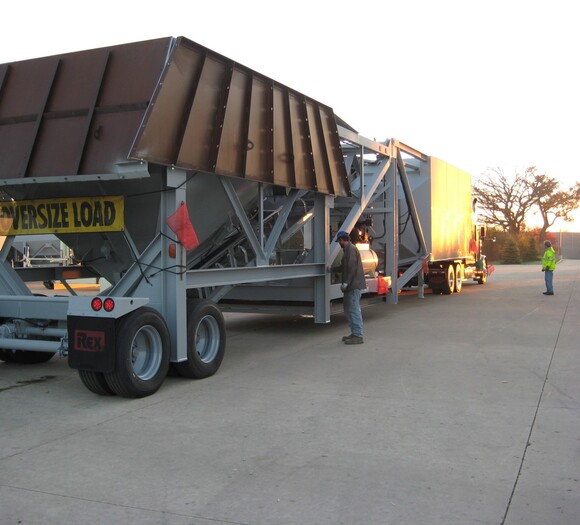

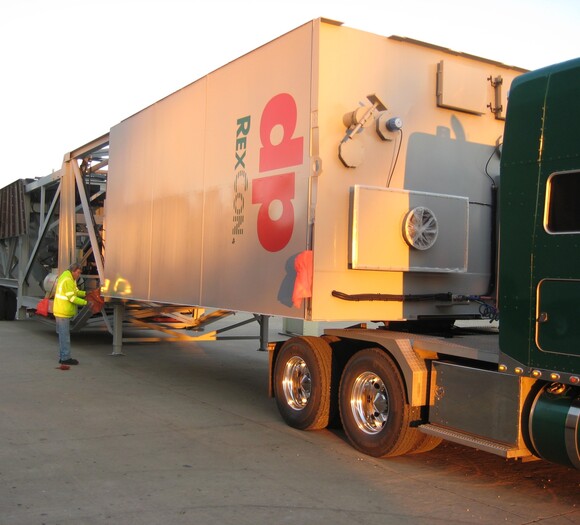

Transportation: Dual Axle with 8 Wheels, with Brakes and Stop Lights. King Pin and Connectors.
Platforms: Ladder from grade to top of base trailer Platform and handrails at top of base trailer Ladder from top of base trailer to top of cement silo Handrails around top of silo.

One Radial Stackers 30” x 70’ Radial Stacker with SC Control and Loading Hopper.

One CommandBATCH Automatic Batch Controller with Automatic Moisture Probe and 5 days Start-up / Training.

Price - $775,000.00
F.O.B. Tracy CA.
