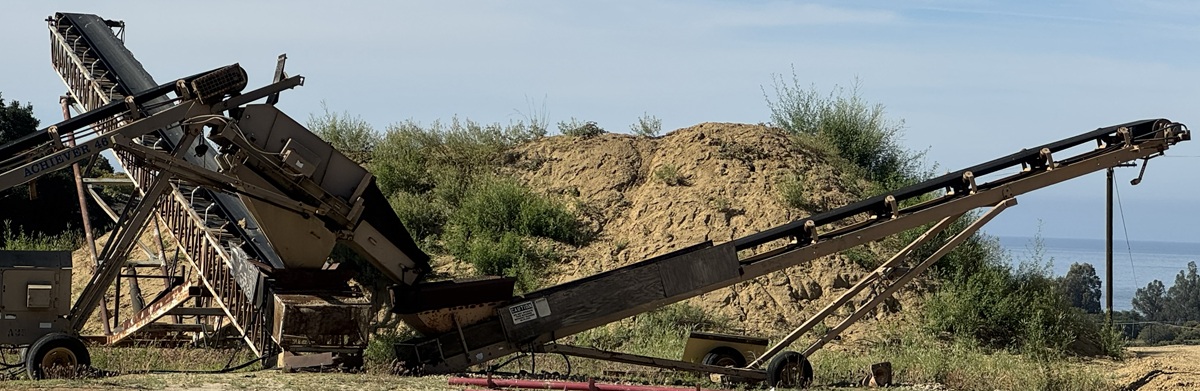

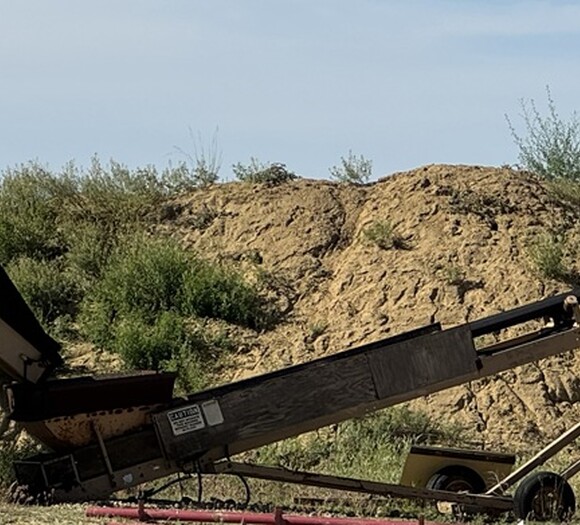

THE SCREEN MACHINE ACHIEVER 46 - PORTABLE SHREDDING/SCREENING PLANT
8 Cubic Yard Hopper ) Loader Operation 3 yard loader (2.29 cu. M)
* New 80 HP Engine
4'-0" X 6'-0" (1.22 M x 1.83 M) Double Deck Four Bearing Screen
Screen Hydraulically Adjustable from Horizontal to Operational
American made in Columbus, OH with American Standard Components
Power System and Structure Feeder
80 h.p. Cummins (liquid cooled) engine w/ throttle
100 gallons (baffled & lockable) hydraulic tank
Single axle with dual 11R x 22.5 tires and air brakes
Capable of running up to 3 conveyors

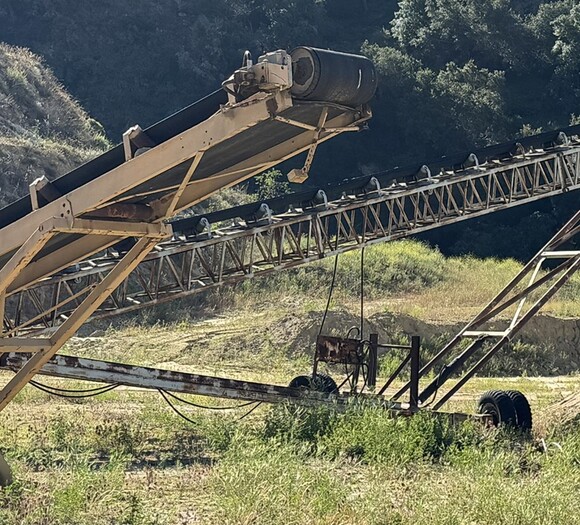

Variable speed Belts - Feeder belt is 26” (66.04 cm) wide; Main belt is 24” (60.96 cm) wide
Shipping Information Height -  12’-11”, Length 39’-9” Width 8’-5”
Weight (approx.) 18,000 lbs.
Sold as-is, where-is (Santa Barbara CA) with no implied warranty.  Buyer will need to demo and load out on applicable trailers.  DHE Inc. believes the specifications included in this web site are accurate, however they are not guaranteed.  This equipment is offered as is, where is and is subject to prior sale or other disposition and does not necessarily comply with O.S.H.A. or E.P.A. standards
