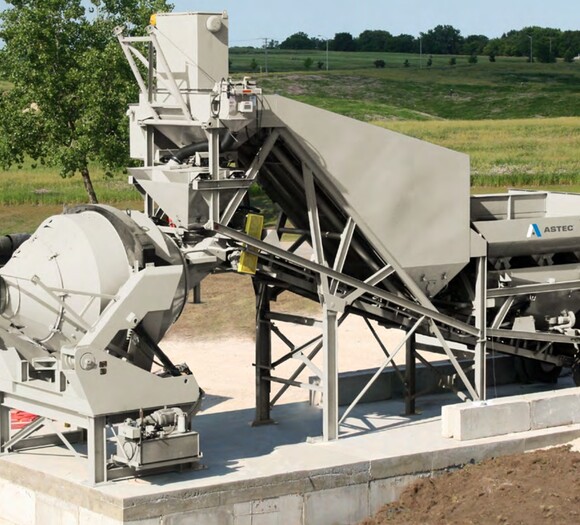

The mobile batch plant is ideal for remote locations and frequent moves.  Future central mix capability offers higher productivity. The telescoping fifth wheel and hinged columns allow the plant to be erected with only a
front-end loader. The gravity feed cement surge hopper is continuously fed by two recirculating screw conveyors.
Specifications:

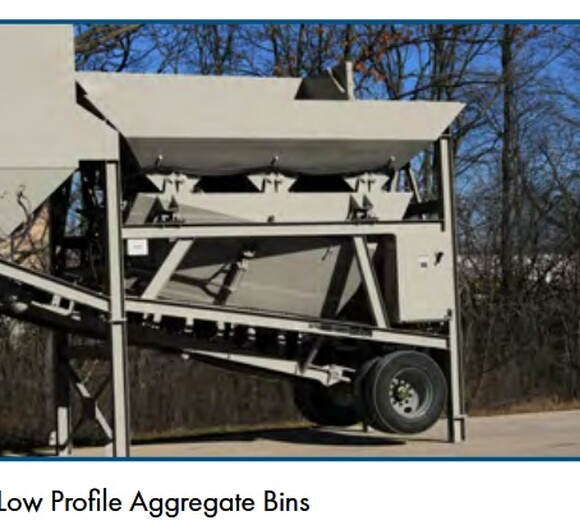

• Aggregate Bins: 16.5 yd3 , 25 T three-compartment with linked clamshell gates.
• Aggregate Batcher: 5 yd3 with four 5,000 lb. load cells and isolators

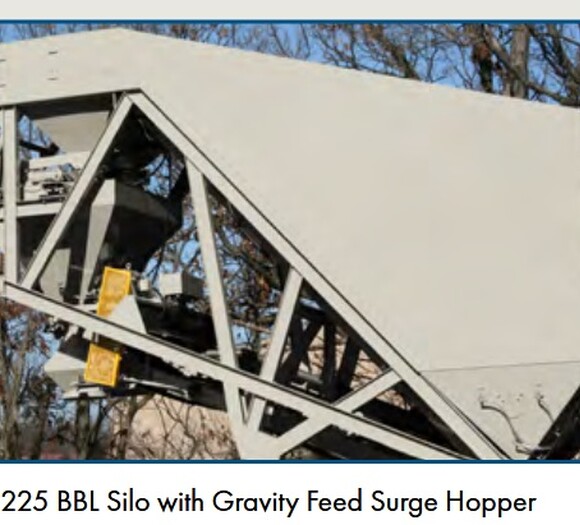

• Cement Storage: 900 ft3, 225 BBL., 42.3 T. The surge hopper holds approx. two batches of cement, re-supplied by two 6” dia., 7.5 HP direct drive screws
• Cement Batcher: 5 yd3 gravity fed, with 5,000 lb. compression load cells and isolators
• Batch Belt: 30” wide, 300 FPM, 15 HP driven by belts with a shaft-mounted reducer
• Water: 3” Mag Meter, 350 GPM
• Air: 10 HP two-stage 120 gal. tank with after-cooler and corrosion resistant rebuildable cylinders
• Solenoids: Sub-base mounted
• Electric: 460V power panel with circuit breakers and 110V transformer, 60kW total power requirement for the plant.

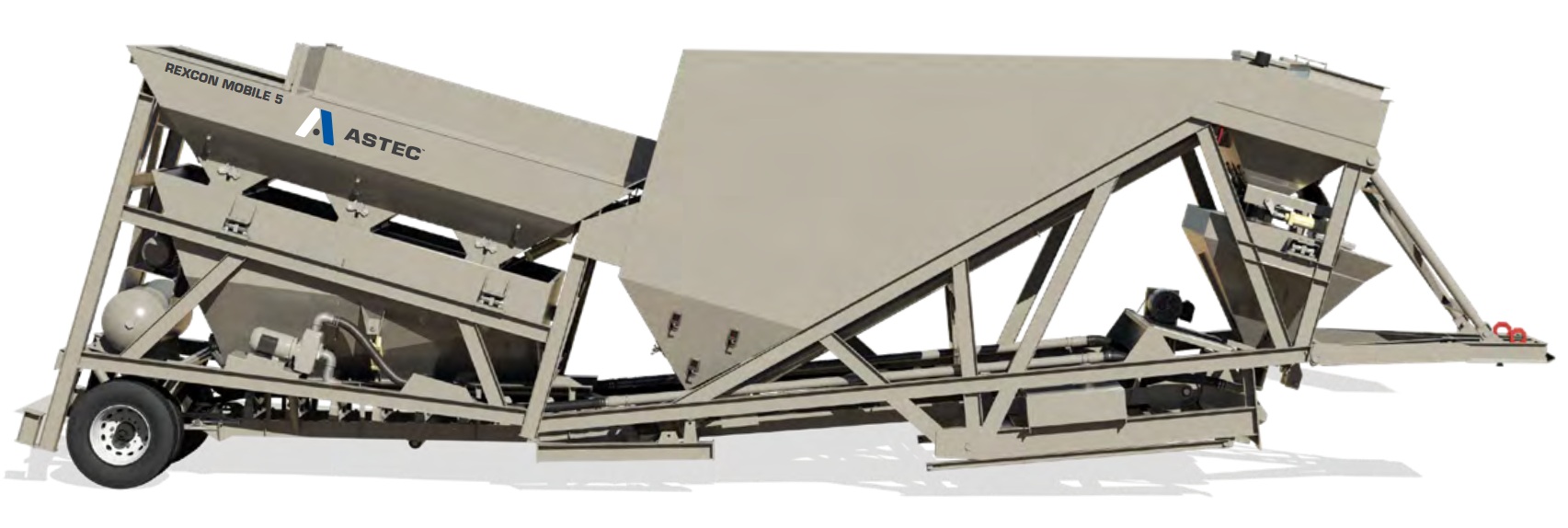

Transport: Length 43’ 10 9/16”
Height 13’ 6”
Operating: Length 34’ 1/4”
Grade to Dust Collector Height 22’ 11 7/16”
Grade to Charge Chute Height 11’0”
Aggregate Bin Height 15’0”
