Heavy-Duty Vertical Conveying

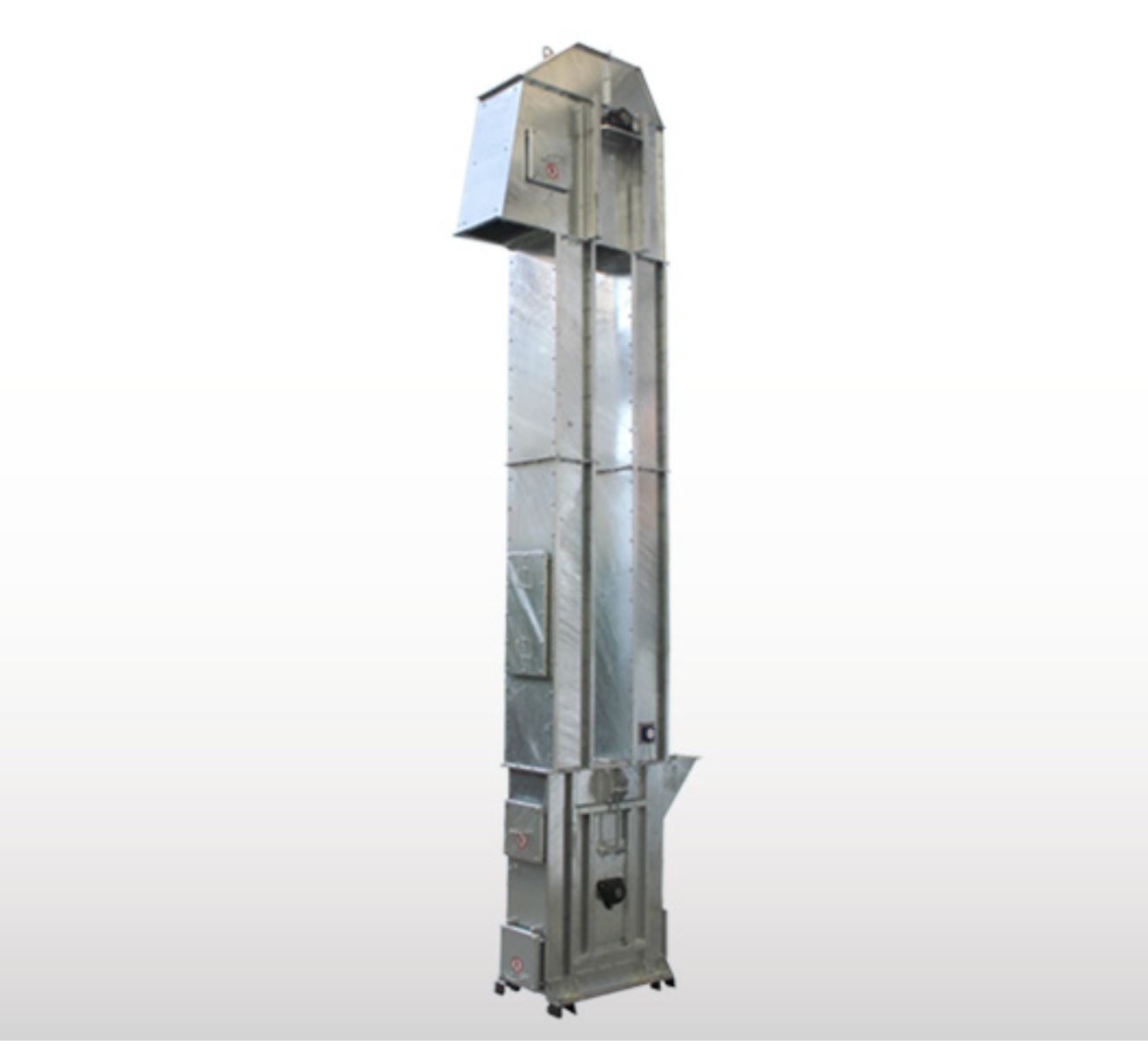

EHN-type Bucket Elevators are used for vertical elevation of aggregates such as gravel, carbonate, lime, limestone, sand, minerals and similar materials dry, powdery, abrasive, non packing materials having particle size of up to 50 mm.
Material is introduced into a loading hopper which is included in the foot section. From there material is continuously picked up by appropriately shaped buckets which are fixed at an equal distance to an endless belt that rotates around a foot and a head roller wheel. The buckets are discharged through an outlet spout in the head section by centrifugal force after having passed the upper roller wheel. EHN Bucket Elevators are used in material handling and storage plants, as well as in different types of material processing plants.
EHN Bucket Elevators are used in handling and storage plants, concrete batching plants, cement mills, lime and gypsum factories, dry building material processing plants and asphalt plants.

Features:

• Throughput up to 242 m3/h (142 cfm)
• Discharge height up to 60 metres (197 ft)
• Surface treatment: hot dip galvanized
• Direct gear motor
• Inspection hatches on head and foot section
• Rotation and belt misalignment sensors
• ATEX versions on requests
• Version completely in stainless steel on request
